1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling Machine / Line / Plant/ DCGF8-8-3/ Small

FOB Reference Price:Get Latest Price
US $12,000-15,000 / Set | 1 Set/Sets 1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling (Min. Order)
Supply Ability:
50 Set/Sets per Month 1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Type:
Filling Machine
Condition:
New
Application:
carbonated drinks
Packaging Type:
Barrel, Bottles, Cans
Packaging Material:
Wood
Automatic Grade:
Automatic/Semi-automatic
Driven Type:
Electric
Voltage:
220V, 380V, 400V, 415V, 460V, 3PH
Power:
2.2kw~19w
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Sunswell
Model Number:
1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling
Dimension(L*W*H):
2400x1650x2500mm
Weight:
2500kg
Certification:
CE, UL, ISO, SGS
After-sales Service Provided:
Engineers available to service machinery overseas
Name:
1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling
filling valve material:
ss316L
Production capacity:
2000~40000BPH
suitable bottle:
50-110
suitable bottle volume:
330-2250ml
Filling Tolerance:
±2%
Filling Principle:
Gravity Filling or isobaric filling
Machine body material:
ss304
Packaging & Delivery
Packaging Details
Seaworthy wooden cases plus wrapping film for mineral water filling machine
1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling Machine / Line / Plant/ DCGF8-8-3/ Small
Delivery Time
within 60 days after downpayment

1000-2000bph Automatic Carbonated Soda Drink Filling / Bottling Machine / Line / Plant/ DCGF8-8-3/ Small



1.General description:

The series equipment is used in producing all kinds of soda drink contained with polyester with bottle.Washing ,filling,sealing

can carried out on the same machine.The design of the machine is scientific and reasonable.



2.Deatails of each equipment:


1) Bottle infeed                                                                    2) Discharge Starwheel

Bottle infeed by combination of infeed starwheels.            Nylon starwheel and conveyor belt work together

Equipped with bottle jam protection device.                     to discharge bottles.

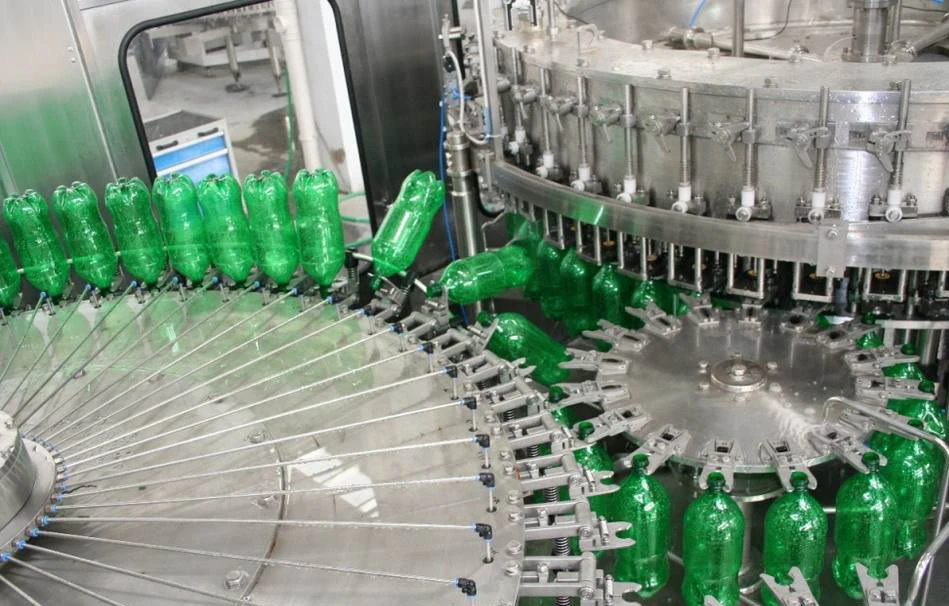

3) Rinser







l.  The rotary wheel is a fully stainless steel welded structure.

2.  The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips

bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle

clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.

3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall,

and also saves rinsing water.

4.  All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.

5.  The rinser is driven by driving system positioned inside machine frame via gear transmission.

6.  Transfer starwheel

7.  Made of stainless steel of superior quality.



4) Filler





l.  Rotary wheel fully made of stainless steel SUS 304.

2.  Gravity filling method.

3.  Filling valves are made of SUS316L.

4.  Filling valves are reasonably structured with accurate filling.

5.  Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.

6.  Level of cylinder is controlled with float-ball.

7.  Filler is driven through gears inside the machine frame.

8.  Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.



5) Capper







Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.

Our capper features as follows:

l.The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao

Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the

experience of asepsis filling machine. For example,

1) extruding wheel (main part to control the stability when sealing), uses the technology of Arol. Kinematical and kinetic

design of the wheel by experts improves the stability and credibility of the equipment.

2) Sealing faucet (main part to control the credibility of sealing), is improved by experts with the design of alnico. Besides

the magnetic contortion variation device, there is variation dial which makes variation more easily. The benefit of this design

is not only it can set the contortion, but also it makes contortion more precise and credible, and reduces inferior.



3.Technical parameter:



Model

DCGF16/12/6

DCGF18/18/6

DCGF24/24/8

DCGF32/32/12

DCGF40/40/12

DCGF50/50/15

Washing head

16

18

24

32

40

48

Filling head

12

18

24

32

40

48

Capping head

6

6

8

12

12

12

Production Capacity:

500ml(bph)

4000

6000

10000

14000

17000

24000

Suitable Bottle height(mm)

150-340

Suitable Bottle diameter(mm)

60-95

Suitable cap diameter (mm)

50-110

Installed capacity(KW)

3.13

3.84

3.84

5.6

6.3

7.3

Overall Size L×W×H(mm)

2400×1670×2350

2470×1970×2350

2865×2170×2350

3700×2570×2350

3800×2950×2400

4500×3400×2400

Total Weight:(kg)

2500

3000

4000

5000

6000

7000











  Please feel free to contact us!

   Tel:  0086 512 5850 1665      Web: www.sswmachine.com
