Sunswell Bottled Carbonated Beverage Filling Equipment

FOB Reference Price:Get Latest Price
US $12,000-15,000 / Set | 1 Set/Sets (Min. Order)
Supply Ability:
10 Unit/Units per Month
Port:
Shanghai Port
Report Suspicious Activity
Overview
Quick Details
Processing:
Other
Condition:
New
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
Sunswell
Voltage:
380V
Power(W):
2.2kw~19W
Weight:
2500KG
Dimension(L*W*H):
3550*1200*1800
Certification:
CE ISO
After-sales Service Provided:
Engineers available to service machinery overseas
Filling Valve Head:
Multi-Head
Automatic Grade:
Automatic
Packaging:
Bottle
Material Type:
Liquid
Structure:
Rotary/Linear
Filling Principle:
Pressure
Type:
Weighing-type Filling Machine
Packaging Container Lifting Structure:
Pneumatic Lifting
Number of Filling Heads:
18/24/32/40/50/60
Feed Cylinder Structure:
Single-Room Feeding
Packaging & Delivery
Packaging Details
Seaworthy wooden cases plus wrapping film
Beverage Drink Bottling Plant / Equipment/ Carboanted / Gas Drink/ 0.25-2Liter/ Easy Operation
Delivery Time
30-60days

Beverage Drink Bottling Plant / Equipment/ Carboanted / Gas Drink/ 0.25-2Liter/ Easy Operation
1 Vol: 200-2000ml
2 Capacity:

Beverage Drink Bottling Plant / Equipment/ Carboanted / Gas Drink/ 0.25-2Liter/ Easy Operation.

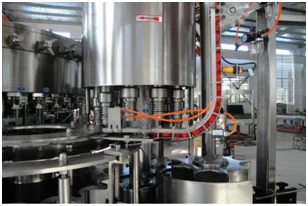

Sunswell Bottled Carbonated Beverage Filling Equipment




1) Bottle infeed 2) Discharge Starwheel

Bottle infeed by combination of infeed starwheels. Nylon starwheel and conveyor belt work together
Equipped with bottle jam protection device. To discharge bottles.

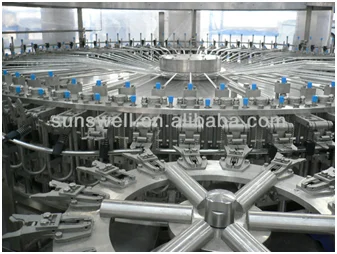

3) Rinser
Sunswell Bottled Carbonated Beverage Filling Equipment



1. The rotary wheel is a fully stainless steel welded structure.
2. The machine applies unique overturning bottle clamp, which is an innovation of our company. This bottle clamp grips Bottle at neck position, avoiding bottle mouth thread contamination caused by rubber gripper block of a traditional bottle Clamp. Made of SUS304 stainless steel, this bottle clamp is hygienic and durable.
3. The high efficiency atomizing spay nozzle installed on bottle clamp is capable of cleaning any part of bottle inner wall, And also saves rinsing water.
4. All sliding bushes of lifting device use Igus (Germany) anti-corrosion maintenance free bearing.
5. The rinser is driven by driving system positioned inside machine frame via gear transmission.
6. Transfer starwheel
7. Made of stainless steel of superior quality.

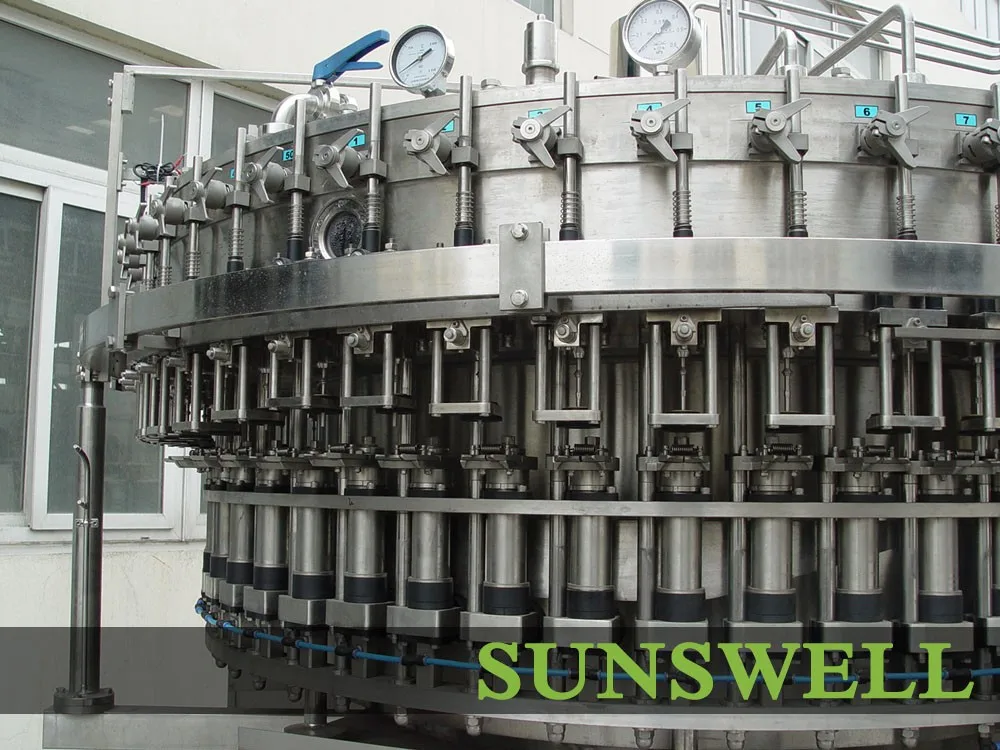

4) Filler
Sunswell Bottled Carbonated Beverage Filling Equipment



1. Rotary wheel fully made of stainless steel SUS 304.
2. Gravity filling method.
3. Filling valves are made of SUS316L.
4. Filling valves are reasonably structured with accurate filling.
5. Bottles go up and down in the function of cam through elevator, to process filling with contact to bottle-mouth.
6. Level of cylinder is controlled with float-ball.
7. Filler is driven through gears inside the machine frame.
8. Link-wheels in rinser, filler and capper are transported in ringed support of bottle-neck.



5) Capper
Capper is the machine with highest precision, influence very much with the stability and reliability of the filling monoblock.
Our capper features as follows:
 The equipment is designed with the support of experts from school of engineering and mechanical in Shanghai Jiao Tong University, and uses the technology of Arol from Italy, most advance technology in the world, developed with the experience Of asepsis filling machine.


Sunswell Bottled Carbonated Beverage Filling Equipment
ModelDCGF14/12/5DCGF18/18/6DCGF24/24/8DCGF32/32/12DCGF40/40/12DCGF50/50/15
Washing head141824324048
Filling head121824324048
Capping head568121212
Production Capacity:
500ml(bph)
20003000500090001200018000
Suitable Bottle height(mm)150-340
Suitable Bottle diameter(mm)60-95
Suitable cap diameter (mm)50-110
Installed capacity(KW)3.133.843.845.66.37.3
Overall Size L×W×H(mm)2400×1670×23502470×1970×23502865×2170×23503700×2570×23503800×2950×24004500×3400×2400
Total Weight:(kg)250030004000500060007000
